Introduction to v3

note

This content applies to the legacy v3 products. Documentation for the current Jumio Platform is available at Jumio Documentation.

The Jumio v3 (Legacy) Platform API allows you to manage your user journeys. It allows you to create and update accounts for your users, prompt them to provide data such as a photo ID and selfie, and get identity verification results in real time so you can complete their onboarding.

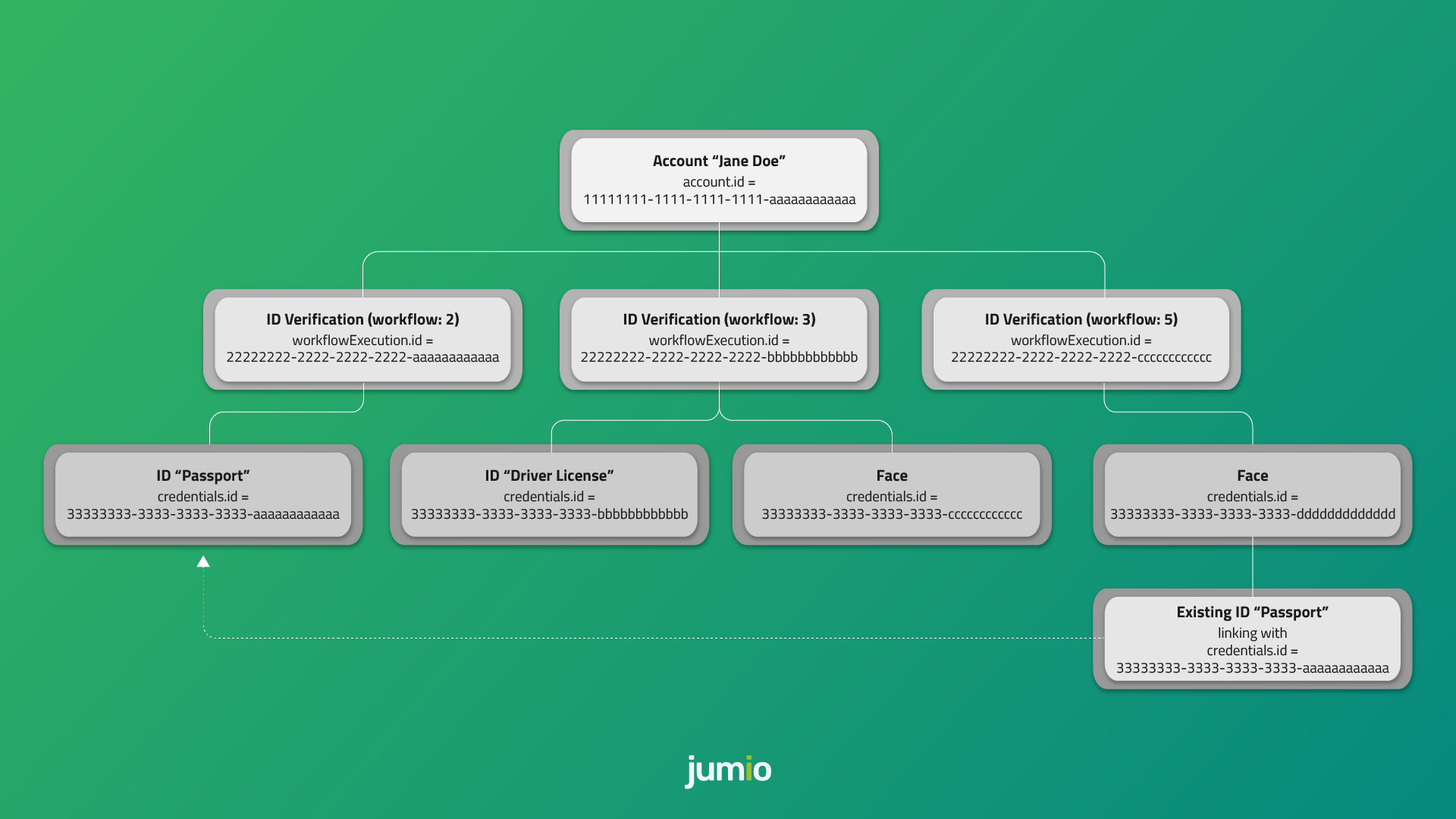

The v3 Platform API is user-based and highly flexible, allowing various workflows that can be easily combined into a single user journey. Each workflow defines a single transaction executing a series of specific tasks, such as data extraction and a liveness check. Multiple workflows can be executed on the same account. Your workflows can execute functionality from several Jumio products, including:

ID Verification: Is this photo ID valid? Identity Verification: Is this person who they say they are? The following diagram shows several possible workflows:

Some functionalities described in this document might be unavailable, depending on the scope of your license with Jumio. Contact your Jumio Solutions Engineer if you have any questions.

Implementation Steps:

Account Creation Account Update Data Acquisition Finalization

Authentication and Encryption

API calls are protected using either HTTP Basic Authentication or OAuth2.

⚠️ Never share your API token, API secret, or OAuth2 credentials with anyone — not even Jumio Support! The Account Management Service initiates the acquisition process and returns:

either a JSON Web Token (JWT), which can be used to authenticate to the Jumio backend system to use with the SDK or Redirect-URLs, which can be used to upload documents using the other channels At the moment, your Basic Auth credentials are constructed using your API token as the User ID and your API secret as the password. You can view and manage your API token and secret in the Customer Portal under:

Settings > API credentials > API Users

OAuth2

Your new OAuth2 credentials are constructed using your API token as the Client ID and your API secret as the Client secret. You can view and manage your API token and secret in the Customer Portal under:

Settings > API credentials > OAuth2 Clients Client ID and Client secret are used to generate an OAuth2 access token. OAuth2 has to be activated for your account. Contact your Jumio Account Manager for activation.

Access Token URL (OAuth2) US: https://auth.amer-1.jumio.ai/oauth2/token EU: https://auth.emea-1.jumio.ai/oauth2/token SG: https://auth.apac-1.jumio.ai/oauth2/token The TLS Protocol is required to securely transmit your data, and we strongly recommend using the latest version. For information on cipher suites supported by Jumio during the TLS handshake see supported cipher suites.

ℹ️ Calls with missing, incorrect or suspicious headers or parameter values will result in HTTP status code 400 Bad Request Error or 403 Forbidden

Examples

Request Access Token

curl --location --request POST 'https://auth.amer-1.jumio.ai/oauth2/token' \
    --header 'Accept: application/json' \
    --header 'Content-Type: application/x-www-form-urlencoded' \
    --data-raw 'grant_type=client_credentials' \
    --basic --user CLIENT_ID:CLIENT_SECRET

Response

{
  "access_token": "YOUR_ACCESS_TOKEN",
  "expires_in": 3600,
  "token_type": "Bearer"
}

Access Token Timeout

Your OAuth2 access token is valid for 60 minutes. After the token lifetime is expired, it is necessary to generate a new access token.

Workflow Transaction Token Timeout

The token lifetime is set to 30 minutes per default. It can be configured via the Jumio Customer Portal and can be overwritten using the API call (tokenLifetime). Within this token lifetime the token can be used to initialize the SDK, API or Web journey.

As soon as the workflow (transaction) starts, a 15 minutes session timeout starts. For each action performed (capture image, upload image) the session timeout will reset, and the 15 minutes will start again.

Account Creation

Create a new account for your end user by using the following API endpoint and below mentioned request headers and request body:

HTTP Request Method: POST

US: https://account.amer-1.jumio.ai/api/v1/accounts EU: https://account.emea-1.jumio.ai/api/v1/accounts SG: https://account.apac-1.jumio.ai/api/v1/accounts

Request Headers

The following fields are required in the header section of your Request

Accept: application/json
Content-Type: application/json
Content-Length: see RFC-7230
Authorization: see RFC6749
User-Agent: YourCompany YourApp/v1.0

⚠️ Jumio requires the User-Agent value to reflect your business or entity name for API troubleshooting. ℹ️ Calls with missing or suspicious headers, suspicious parameter values, or without OAuth2 will result in HTTP status code 403 Forbidden

Request Body

The body of your initiate API request allows you to:

provide your own internal tracking information for the user and transaction. specify what user information is captured and by which method. preset options to enhance the user journey. Values set in your API request will override the corresponding settings configured in the Customer Portal.

(Mandatory parameters in bold.)

Parameter	Type	Max. Length	Notes
customerInternalReference	string	100	Customer internal reference for linking the request in the customer backend (must not contain any PII)
workflowDefinition	object	–	Definition of the specific documents required to execute the workflow capabilities
userConsent2	object	–	User consent required where facial recognition or biometric data processing is used. Possible values: See `userConsent`
workflowDefinition.key	object	–	Key of the workflow definition to execute. See Workflow Definition Keys
workflowDefinition.credentials	array (object)	–	Optional. Customize the acquiring and workflow process. See `workflowDefinition.credentials` for possible values
workflowDefinition.capabilities	object	–	Optional. Customize the acquiring and workflow process. See `workflowDefinition.capabilities` for possible values
userReference1	string	100	Reference for the end user in the customer backend (must not contain any PII)
reportingCriteria	string	255	Additional information provided by the customer for searching and aggregation purposes
callbackUrl	string	255	Callback URL for this request. Overrides the callback URL set in the Customer Portal
tokenLifetime	string	–	Valid period unit: `s` (seconds), `m` (minutes), `h` (hours), `d` (days). Minimum: 5m, Maximum: 60d, Default: 30m. Overrides Authorization token lifetime in the Customer Portal. Example: `1d`, `30m`, `600s`
web	object	–	Parameters relevant only for the Web channel
web.successUrl	string	255	URL to redirect the end user after a successful web acquisition. Overrides success URL in the Customer Portal
web.errorUrl	string	255	URL to redirect the end user after a failed web acquisition. Overrides error URL in the Customer Portal
web.locale	string	5	Renders content in the specified language. Overrides default locale in the Customer Portal. See supported locale values

1 Mandatory request parameter for Workflow 32: ID Verification, Identity Verification, Screening.. 2 Mandatory for End-User Consent even if the user is not based in USA.

Request workflowDefinition.credentials

Parameter	Type	Max. Length	Notes
category	string	–	Type of credential. Possible values: `ID`, `FACEMAP`, `DOCUMENT`, `SELFIE`
country	object	–	Defines the countries applicable for the workflow. Possible values: `country.predefinedType`, `country.values`
country.predefinedType	string	–	Determines how the country is presented to the end user. Possible values: `DEFINED` (default: end user cannot change), `RECOMMENDED` (preselected but user can change)
country.values	array (string)	–	List of applicable countries. At least one ISO 3166-1 alpha-3 country code must be defined for the workflow. Example: `USA`, `BRA`, `DEU`
type	object	–	Defines the credential type(s) used in the workflow. Possible values: `type.predefinedType`, `type.values`
type.predefinedType	object	–	Determines how the document type is presented to the end user. Possible values: `DEFINED` (default: user cannot change), `RECOMMENDED` (preselected but user can change)
type.values	array (string)	–	List of credential types allowed for the workflow. Possible values: • If `category = ID`: `ID_CARD`, `DRIVING_LICENSE`, `PASSPORT`, `VISA` • If `category = FACEMAP`: `IPROOV_STANDARD` (Web + SDK only), `IPROOV_PREMIUM` (Workflow 3: ID & Identity Verification Web + SDK / Workflow 9: Authentication SDK / Workflow 16: Authentication On Premise SDK), `JUMIO_STANDARD`

1 Web channel: Only supports predefined country and type when both are provided. Also only a single country and a single type must be specified, a list of presets is not supported for Web.

Request workflowDefinition.capabilities

Parameter	Type	Max. Length	Notes
watchlistScreening	object	–	Configuration options for the Watchlist Screening capability. Possible values: `watchlistScreening.additionalProperties`
watchlistScreening.additionalProperties	string	–	Provide request options for the Watchlist Screening capability.

Request userConsent

Parameter	Type	Max. Length	Notes
userIp	string	–	Current IP address of the end-user used during the verification.
userLocation	object	–	End-user location details. Possible values: `userLocation.country`, `userLocation.state`.
userLocation.country	string	3	Current country based on the end-user’s location during verification. Possible values: ISO 3166-1 alpha-3 country codes.
userLocation.state	string	100	Current state/province as per end-user location. Applicable only in countries with states (e.g., USA, CAN, AUS). For USA, CAN, AUS: provide alpha-2 state code (without country & hyphen), e.g., IL (Illinois), NSW (New South Wales). For other countries, any string if applicable.
consent	object	–	End-user consent details. Possible values: `consent.obtained`, `consent.obtainedAt`.
consent.obtained	string	–	Indicates whether end-user consent was obtained. Possible values: `yes` (consent given), `no` (consent not given), `na` (not applicable). Mandatory if `userLocation.country = USA`.
consent.obtainedAt	string	–	UTC timestamp when consent was obtained. Format: `YYYY-MM-DDThh:mm:ss.SSSZ`. Mandatory if `consent.obtained = yes`.

1 Mandatory for End-User Consent even if the user is not based in USA. 2 Mandatory for End-User Consent if userLocation.country = USA / consent.obtained = yes

Response

Unsuccessful requests will return HTTP status code 400 Bad Request, 401 Unauthorized, 403 Forbidden or 404 Not Found (in case of a failed update scenario) if the scan is not available.

Successful requests will return HTTP status code 200 OK along with a JSON object containing the information described below.

Parameter	Type	Notes
timestamp	string	UTC timestamp of the response. Format: `YYYY-MM-DDThh:mm:ss.SSSZ`.
account	object	Account details. Possible values: `account.id`.
account.id	string	UUID of the account.
sdk	object	SDK parameters (only relevant for SDK channel). Possible values: `sdk.token`.
sdk.token	string	JWT token for performing any SDK action.
workflowExecution	object	Workflow execution details. Possible values: `workflowExecution.id`, `workflowExecution.credentials`.
workflowExecution.id	string	UUID of the workflow.
workflowExecution.credentials	array (object)	Credential response objects. See `workflowExecution.credentials`.
web	object	Web parameters (only relevant for WEB channel). Possible values: `web.href`, `web.successUrl`, `web.errorUrl`.
web.href	string	URL for accessing the workflow in the browser.
web.successUrl	string	URL where the browser redirects the user after a successful web acquisition journey (defined in Customer Portal or overwritten in initiate call).
web.errorUrl	string	URL where the browser redirects the user after a failed web acquisition journey (defined in Customer Portal or overwritten in initiate call).

esponse workflowExecution.credentials

Parameter	Type	Notes
id	string	UUID of the credential.
category	string	Possible values: `ID`, `FACEMAP`, `DOCUMENT`, `SELFIE`.
country	object	Define at least one ISO 3166-1 alpha-3 country code for the workflow definition. Possible values: ISO 3166-1 alpha-3 country code.
type	object	Define the credential type codes. Possible values: `ID_CARD`, `DRIVING_LICENSE`, `PASSPORT`, `VISA`.
allowedChannels	array	Channels supported to upload this credential. Possible values: `WEB`, `API`, `SDK`.
api	object	Available actions for API calls (some actions may be unavailable). Only relevant for the API channel. Possible values: `api.token`, `api.parts`, `api.workflowExecution`.
api.token	string	JWT token for performing any API action. Only relevant for the API channel.
api.parts	object	Href to manage parts of the credential. Possible values: `FRONT`, `BACK`, `FACE`, `FACEMAP`. Only relevant for the API channel.
api.workflowExecution	string	Href to manage the acquisition and workflow processing. Only relevant for the API channel.

Examples

Initiate Account

curl --location --request POST 'https://account.amer-1.jumio.ai/api/v1/accounts' \
    --header 'Content-Type: application/json' \
    --header 'User-Agent: User Demo' \
    --header 'Authorization: Bearer
    YOUR_ACCESS_TOKEN' \
    --data-raw '{
        "customerInternalReference": "CUSTOMER_REFERENCE",
        "workflowDefinition": {
            "key": 2,
            "credentials": [
                {
                  "category": "ID",
                  "country": {
                    "predefinedType": "DEFINED",
                    "values": ["USA", "CAN", "AUT", "GBR"]
                  },
                  "type": {
                    "predefinedType": "DEFINED",
                    "values": ["DRIVING_LICENSE", "ID_CARD"]
                  }
                }
            ],
            "capabilities": {
              "watchlistScreening": {
                "additionalProperties": "string"
              }
            }
        },
        "callbackUrl": "YOUR_CALLBACK_URL",
        "userReference": "YOUR_USER_REFERENCE",
        "userConsent": {
            "userIp": "226.80.211.232",
            "userLocation": {
                "country": "USA",
                "state": "IL"
            },
             "consent": {
              "obtained": "yes",
              "obtainedAt": "2022-07-20T17:20:35.000Z"

            }
        }
    }'

Account Update

After you have created an account for an end user, you can use this API to update that account. You will use this API endpoint for every new workflow (transaction) you need to initialize for that end user.

Updating an account is very similar to creating one; the request headers and body are the same in both cases. The difference is that you pass the accountId to the endpoint and use PUT instead of POST.

Request

HTTP Request Method: PUT

US: https://account.amer-1.jumio.ai/api/v1/accounts/<accountId>
EU: https://account.emea-1.jumio.ai/api/v1/accounts/<accountId>
SG: https://account.apac-1.jumio.ai/api/v1/accounts/<accountId>

Request Headers Please refer to Account Create section above.

Request Body Please refer to Account Create section above.

Response Please refer to Account Create section above.

Examples

Request

curl --location --request PUT 'https://account.amer-1.jumio.ai/api/v1/accounts/<accountId>' \
--header 'Content-Type: application/json' \
--header 'User-Agent: User Demo' \
--header 'Authorization: Bearer
YOUR_ACCESS_TOKEN' \
--data-raw '{
    "customerInternalReference": "CUSTOMER_INTERNAL_REFERENCE",
    "workflowDefinition": {
        "key": 2,
        "credentials": [
            {
                "category": "FACEMAP",
                "type": {
                    "values": ["IPROOV_STANDARD", "JUMIO_STANDARD"]
                }
            },
            {
                "category": "ID",
                "type": {
                    "values": ["DRIVING_LICENSE", "ID_CARD", "PASSPORT"]
                },
                "country": {
                    "values": ["USA", "CAN", "AUT"]
                }
            }
        ]
    },
    "userConsent": {
        "userIp": "226.80.211.232",
        "userLocation": {
            "country": "AUT"
        }
    }
}

Response

{
    "timestamp": "2021-05-28T09:17:50.240Z",
    "account": {
        "id": "11111111-1111-1111-1111-aaaaaaaaaaaa"
    },
    "web": {
        "href": "https://mycompany.web.amer-1.jumio.ai/web/v4/app?authorizationTokenxxx&locale=es",
        "successUrl": "https://www.yourcompany.com/success",
        "errorUrl": "https://www.yourcompany.com/error"
    },
    "sdk": {
        "token": "xxx"
    },
    "workflowExecution": {
        "id": "22222222-2222-2222-2222-aaaaaaaaaaaa",
        "credentials": [
            {
                "id": "33333333-3333-3333-aaaaaaaaaaaa",
                "category": "ID",
                "allowedChannels": [
                    "WEB",
                    "API",
                    "SDK"
                ],
                "api": {
                    "token": "xxx",
                    "parts": {
                        "front": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/FRONT",
                        "back": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa/credentials/33333333-3333-3333-aaaaaaaaaaaa/parts/BACK"
                    },
                    "workflowExecution": "https://api.amer-1.jumio.ai/api/v1/accounts/11111111-1111-1111-1111-aaaaaaaaaaaa/workflow-executions/22222222-2222-2222-2222-aaaaaaaaaaaa"
                }
            }
        ]
    }
}

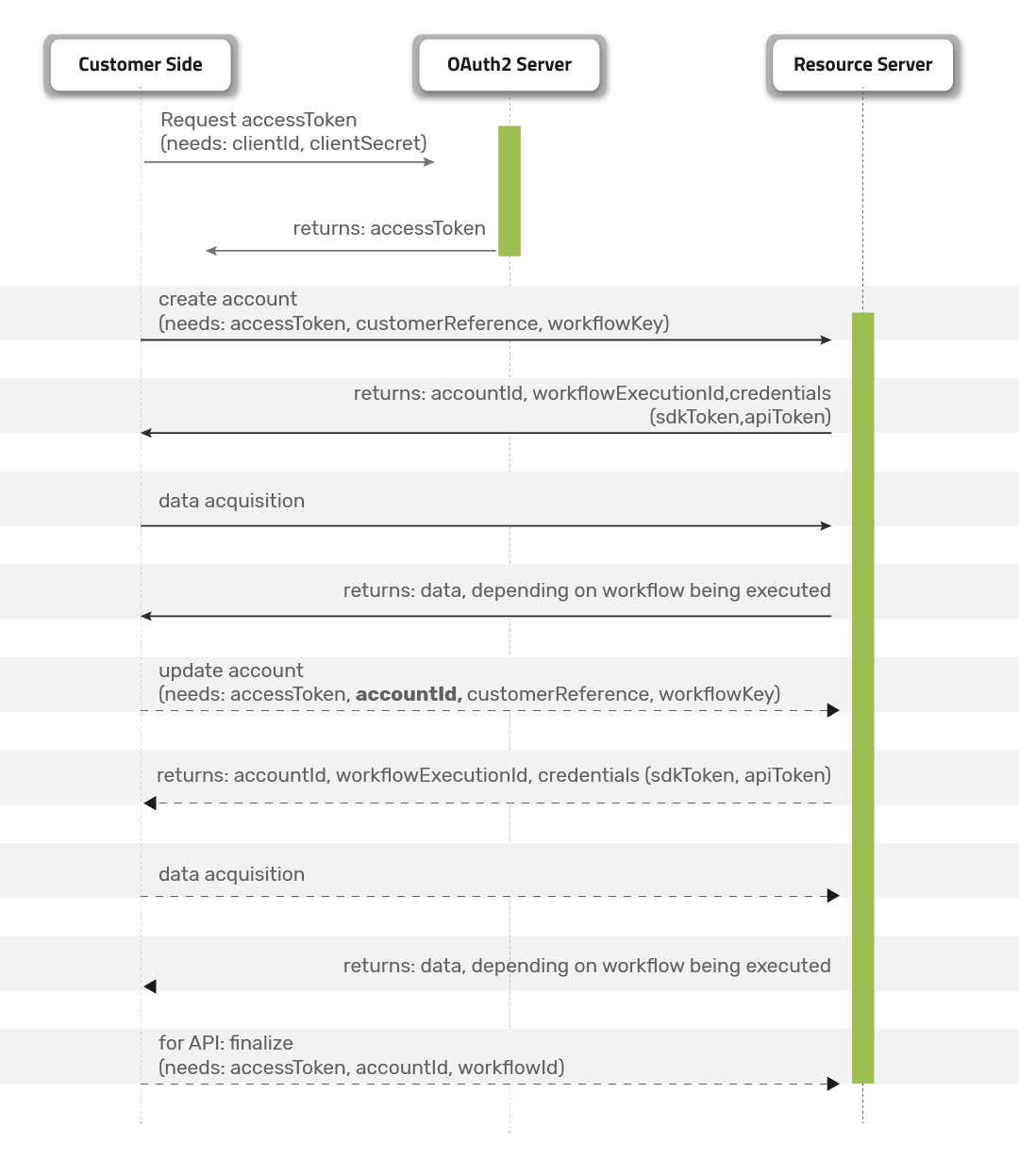

Implementation Steps: Sequence Diagram

Workflow Descriptions

Workflow Definition Keys

Definition Key	Name	Description
1	ID Capture and Storage	Captures a government-issued ID document and stores the extracted data.
2	ID Verification	Verifies a government-issued ID document and returns: (a) whether the document is valid, and (b) the data extracted from the document.
3	ID and Identity Verification	Verifies a photo ID document and returns: (a) whether the document is valid, and (b) the extracted data. Also compares the user’s face with the ID photo and performs a liveness check to confirm the person is physically present.
5	Similarity to Existing ID	Matches a user’s selfie to the face from a previously verified and stored ID document.
6	Standalone Liveness	Captures a user’s face to verify that the person is physically present and not presenting a photo or other spoofed image.
9	Authentication	Compares a user’s facemap to an existing facemap captured during a previous workflow (for example, Workflow 3 or Workflow 6).
16	Authentication on Premise	Compares a user’s facemap to an existing facemap stored on the customer side. The facemap must have been captured during a previous workflow (for example, Workflow 3 or Workflow 6) and can be retrieved using the Retrieval API with the `validFaceMapForAuthentication` parameter.
20	Similarity of Two Images	Matches user photos across two IDs, two selfies, or a selfie and an ID photo to verify they belong to the same person.
32	ID Verification, Identity Verification, Screening	Verifies a photo ID document and returns: (a) whether the document is valid, and (b) extracted data. Also performs face comparison, liveness detection, and checks whether the user appears on any sanctions lists.

Workflows are specified using the key attribute in the workflowDefinition object:

"workflowDefinition": {
    "key": DEFINITION_KEY,
    "credentials": []
}

To collect consent on Jumio’s behalf, you will need to incorporate certain explicit consent collection language and a link to Jumio’s Privacy Notice within your user consent flow before collection of end-user biometric data, if the end-user is located inside the United States.

The following is an example of how consent may be presented to the end-user, but you may use your own custom language as long as the required elements are present:

“By clicking “Start” you consent to Jumio collecting, processing, and sharing your personal information, which may include biometric data, pursuant to its Privacy Notice.”

Every transaction which includes any product/workflow step in which biometrics are collected needs to have consent parameters adapted and populated. This means if Face match is enabled for your account, Liveness, or Authentication is used you will need to share consent parameters.

If your Privacy Policy and Terms & Conditions allowing continuous use of consent obtained from end-user on biometric data collection and processing the timestamp (consent.obtainedAt) should be when the original/updated consent was obtained.

If consent is not provided or other scenarios where consent needs to be resubmitted use our Account Update API to add the needed consent parameters.

⚠️ If the continuous consent applies, the consent is valid for a period of maximum 3 years (between the consent timestamp and current timestamp). A new consent needs to be obtained from the end-user before continuous consent expires. The consent timestamp (consent.obtainedAt) has to be updated accordingly. Note: Until further notice Jumio will not perform any treatment based on the consent parameters. After a notice period business validation will be performed which could also lead to a rejection of the transaction, also providing additional consent specific error codes. The rejection will happen at the data acquisition step and not at the Account Create or Account Update stage. We will inform you separately on a specific date.

Which Jumio products collect biometrics?

Jumio Product / Workflow Step	Biometric Component
Jumio Identity Verification	Includes liveness detection and face matching. May also serve as the base facemap creation for future authentication workflows.
Jumio Go	Includes liveness detection and face matching.
Authentication	Creates a new facemap and compares it against an existing stored facemap.
ID Verification	Includes face matching (if enabled for the account).
Jumio Video Verification	Includes liveness detection and face matching.
Jumio Screening	ID Verification: Includes face matching (if 1:n face match is enabled for the account). Identity Verification: Includes liveness detection and face matching.

Within the consent area in the API request body.

Always mandatory: Populate the end-user IP address and end-user current location (userLocation.userIp,userLocation.country) Mandatory if userLocation.country = USA: Populate the consent parameters (i.e., status, timestamp) See examples for a sample request including the user consent parameters.

Data Acquisition

SDK This section illustrates how to implement the SDK.

After creating/updating a new account you will receive a sdk.token (JWT) for initializing the SDK. Use this token with your Android or iOS code.

Android

try {
  sdk = JumioSDK(this)

  // Set your access token
  sdk.token = "yourAccessToken"

  // Set the dataCenter, default is US
  sdk.dataCenter = jumioDataCenter

} catch (e1: PlatformNotSupportedException) {
    // Handle exceptions here
  } catch (e2: NullPointerException) {
    // Handle exceptions here
}

iOS

sdk = Jumio.SDK()

// Set your access token
sdk.token = "yourAccesToken"

// Set the dataCenter, default is US
sdk.dataCenter = jumioDataCenter

For more information on how to use the Jumio Mobile SDK please refer to our mobile guides for iOS and Android.

API

This section illustrates how to implement the API.

After creating/updating a new account, you receive one or more specific redirect URL(s) to upload needed credentials (ID, facemap, document, selfie).

Request

Request Headers The following fields are required in the header section of your Request

Accept: application/json
Content-Type: multipart/form-data
Content-Length: see RFC-7230
Authorization: see RFC6749
User-Agent: YourCompany YourApp/v1.0

Request URL HTTP Request Method: POST

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/<classifier> EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/<classifier> SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/credentials/<credentialsId>/parts/<classifier>

Request Path Parameters

Parameter	Type	Notes
accountId	string	UUID of the account.
workflowExecutionId	string	UUID of the workflow execution.
credentialsId	string	UUID of the credential.
classifier	string	Defines the type of image being uploaded. Possible values: `FRONT`, `BACK`, `FACE`, `FACEMAP`.

Request Body

Key	Value
file	Supported formats: JPEG, PNG. Maximum file size: 10 MB. Maximum resolution: 8000 × 8000 pixels.

Response

Unsuccessful requests will return HTTP status code 401 Unauthorized, 403 Forbidden or 404 Not Found if the scan is not available.

Successful requests will return HTTP status code 200 OK along with a JSON object containing the information described below.

Response Body

Parameter	Type	Notes
timestamp	string	Timestamp (UTC) of the response. Format: YYYY-MM-DDThh:mm:ss.SSSZ
account	object	Possible values: account.id
account.id	string	UUID of the account
workflowExecution	object	Possible values: workflowExecution.id, workflowExecution.credentials
workflowExecution.id	string	UUID of the workflow
workflowExecution.credentials	array (object)	Credential response. See workflowExecution.credentials
api	object	Available actions for the API calls, actions can be omitted due to unavailability. Possible values: api.token, api.parts, api.workflowExecution
api.token	string	JWT token for performing any action for API
api.parts	object	href to manage parts for the account credential. Possible values: FRONT, BACK, FACE, FACEMAP
api.workflowExecution	string	href to manage the acquisition and workflow processing

Examples

{
    "timestamp": "2021-03-05T13:17:49.042Z",
    "account": {
        "id": "11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
    },
    "workflowExecution": {
        "id": "22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
    },
    "api": {
        "token": "xxx",
        "parts": {
            "front": "https://api.apac-1.jumio.ai/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx/workflow-executions/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx/credentials/33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx/parts/FRONT",
            "back": "https://api.apac-1.jumio.ai/api/v1/accounts/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx/workflow-executions/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx/credentials/33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx/parts/BACK"
        },
        "workflowExecution": "https://api.apac-1.jumio.ai/api/v1/accounts/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx/workflow-executions/33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
    }
}

When all data has been uploaded, be sure to finalize the workflow as described below.

Finalization

Once the user has provided their data, the workflow needs to be finalized. Finalization sends the data to Jumio for processing and cleans up the workflow. If no finalization call happens, the workflow will be cleaned up after the token or session expires (workflowExecution.status = SESSION_EXPIRED / TOKEN_EXPIRED).

HTTP Request Method: PUT

US: https://api.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> EU: https://api.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> SG: https://api.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>

Request Headers

The following fields are required in the header section of your Request

Accept: application/json
Content-Type: application/json
Content-Length: see RFC-7230
Authorization: see RFC6749
User-Agent: YourCompany YourApp/v1.0

Request Path Parameters

Parameter	Type	Note
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow

Response

Unsuccessful requests will return HTTP status code 401 Unauthorized, 403 Forbidden or 404 Not Found if the scan is not available.

Successful requests will return HTTP status code 200 OK along with a JSON object containing the information described below.

Parameter	Type	Note
timestamp	string	Timestamp (UTC) of the response. Format: YYYY-MM-DDThh:mm:ss.SSSZ
account	object	Possible values: account.id
account.id	string	UUID of the account
workflowExecution	object	Possible values: workflowExectuion.id
workflowExecution.id	string	UUID of the workflow

Examples

Request

PUT
/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx/workflow-executions/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx HTTP/1.1
Host: api.apac-1.jumio.ai
Authorization: Bearer xxx
Content-Length: 38
Content-Type: multipart/form-data;

Response

{
    "timestamp": "2021-02-25T11:55:41.347Z",
    "account": {
        "id": "11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
    },
    "workflowExecution": {
        "id": "22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
    }
}

Web

This section illustrates how to implement the Web client.

Initiating

Use the Account Creation or Account Update API to initiate a Web workflow.

The following optional web-specific parameters can be included in the body of the initiate request.

ℹ️ You need to define a subdomain in your Customer Portal under Settings > Application Settings > Redirect > Domain Name Prefix in order to successfully generate a web.href.

Redirect pages

Use web.successUrl and web.errorUrl to specify how the end user will be redirected by the browser at the end of the web acquisition user journey.

If these parameters are not provided, and the values are not present in the Customer Portal settings, the end user will be shown a success or error page instead.

Languages

Parameter web.locale can be used to render the content of the client in the specified language.

Hyphenated combination of ISO 639-1:2002 alpha-2 language code plus ISO 3166-1 alpha-2 country (where applicable).

Value	Locale
ar	Arabic
bg	Bulgarian
cs	Czech
da	Danish
de	German
el	Greek
en	American English (default)
en-GB	British English
es	Spanish
es-MX	Mexican Spanish
et	Estonian
fi	Finnish
fr	French
he	Hebrew
hr	Croatian
hu	Hungarian
hy	Armenian
id	Indonesian
it	Italian
ja	Japanese
ka	Georgian
km	Khmer
ko	Korean
lt	Lithuanian
ms	Malay
nl	Dutch
no	Norwegian
pl	Polish
pt	Portuguese
pt-BR	Brazilian Portuguese
ro	Romanian
ru	Russian
sk	Slovak
sv	Swedish
th	Thai
tr	Turkish
vi	Vietnamese
zh-CN	Simplified Chinese
zh-HK	Traditional Chinese

Displaying the Web Client

When you initiate the web client, the API returns the web.href that you use to display the web client to the end user. You can provide this URL in several ways:

Within an iFrame on your web page As a link on your web page that opens a new browser tab or window As a link shared securely with the end user In a native webview

Embedding in an iFrame

If you want to embed ID Verification on your web page, place the iFrame tag in your HTML code where you want the client to appear. Use web.href as the value of the iFrame src attribute.

⚠️ The allow="camera" attribute must be included to enable the camera for image capture in supported browsers. ⚠️ If you are nesting the iFrame in another iFrame, the allow="camera" attribute must be added to every iFrame. ⚠️ Do not add the iFrame element and its attributes with javascript dynamically at runtime. The iFrame must be present when the page loads. ⚠️ Camera capture is only possible within an iFrame when the containing page is served securely over https.

Width and Height We recommend adhering to the responsive breaking points in the table below.

Size class	Width	Height
Large	≥ 900 px	≥ 710 px
Medium	640 px	660 px
Small	560 px	600 px
X-Small	≤ 480 px	≤ 535 px

When specifying the width and height of your iFrame, you may prefer to use percentage values so that the iFrame behaves responsively on your page.

⚠️ The ID Verification Web client itself will responsively fill the iFrame that it is loaded into.

Biometric Face Capture ⚠️ The allow="camera;fullscreen;accelerometer;gyroscope;magnetometer" allowfullscreen iFrame attributes must be included to enable biometric face capture in supported browsers. ⚠️ If you are nesting the iFrame in another iFrame, the allow="camera;fullscreen;accelerometer;gyroscope;magnetometer" allowfullscreen attribute must be added to every iFrame. ⚠️ Do not add the iFrame element and its attributes with javascript dynamically at runtime. The iFrame must be present when the page loads. ⚠️ Camera capture is only possible within an iFrame when the containing page is served securely over https. ⚠️ Biometric Face Capture is not possible within an iFrame on incognito mode.

Example HTML

Absolute sizing example

<iframe src="https://yourcompany.netverify.com/web/v4/app?locale=en-GB&authorizationToken=xxx" width="930" height="750" allow="camera;fullscreen;accelerometer;gyroscope;magnetometer" allowfullscreen></iframe>

Responsive sizing example

<iframe src="https://yourcompany.netverify.com/web/v4/app?locale=en-GB&authorizationToken=xxx" width="70%" height="80%" allow="camera;fullscreen;accelerometer;gyroscope;magnetometer" allowfullscreen></iframe>

Biometric face capture example

Optional iFrame logging

When the ID Verification client is embedded in an iFrame1, it will communicate with the containing page using the JavaScript window.postMessage() method to send events containing pre-defined data. This allows the containing page to react to events as they occur (e.g., by directing to a new page once the success event is received).

Events include data that allows the containing page to identify which ID Verification transaction triggered the event. Events are generated in a stateless way, so that each event contains general contextual information about the transaction (e.g., transaction reference, authorization token, etc.) in addition to data about the specific event that occurred.

Using JavaScript, the containing page can receive the notification and consume the data it contains by listening for the message event on the global window object and reacting to it as needed. The data passed by the ID Verification Web client in this notification is represented as JSON in the data string property of the listener method's event argument. Parsing this JSON string results in an object with the properties described below.

All data is encoded with UTF-8.

1 This functionality is not available for instances of ID Verification running in a standalone window or tab.

event.data object

Required items appear in bold type.

Property	Type	Description
accountId	string	UUID of the account
authorizationToken	string	Authorization token, valid for a specified duration
workflowExecutionId	string	UUID of the workflow
customerInternalReference1	string	Internal reference for a request to link it in the customer backend. It must not contain Personally Identifiable Information (PII) or sensitive data such as e-mail addresses
eventType	integer	Type of event that has occurred. Possible values: 510 (application state-change)
dateTime	string	UTC timestamp of the event in the browser. Format: YYYY-MM-DDThh:mm:ss.SSSZ
payload	JSON object	Information specific to the event generated (see event.data.payload object)

event.data.payload object

Required items appear in bold type.

Name	Type	Description
value	string	Possible values: loaded (ID Verification loaded in the user's browser), success (Images were accepted for verification), error (Verification could not be completed due to an error)
metainfo	JSON object	Additional meta-information for error events (see metainfo object)

event.data.payload.metainfo object

Required items appear in bold type.

Property	Type	Description
code	integer	Only present if payload.value = error. See errorCode values

Example iFrame logging code

function receiveMessage(event) {
    var data = window.JSON.parse(event.data);
  console.log('ID Verification Web was loaded in an iframe.');
  console.log('auth-token:', data.authorizationToken);
  console.log('event-type:', data.eventType);
  console.log('date-time:', data.dateTime);
  console.log('workflow-execution-id:', data.workflowExecutionId);
  console.log('account-id:', data.accountId);
  console.log('customer-internal-reference:', data.customerInternalReference);
  console.log('value:', data.payload.value);
  console.log('metainfo:', data.payload.metainfo);
}
window.addEventListener("message", receiveMessage, false);

Using a Native WebView ID Verification Web can be embedded within a WebView in your native mobile application.

See Supported Environments > Native WebView for information about support on Android and iOS.

Android

This sections illustrates how to embed ID Verification Web in a native Android WebView.

Permissions and Settings

Make sure that the required permissions are granted.

android.permission.INTERNET - for remote resources access
android.permission.CAMERA - for camera capture
android.permission.READ_EXTERNAL_STORAGE - for upload functionality The following settings are required for the native WebView for Android.

Enable javaScriptEnabled - tells the WebView to enable JavaScript execution

Allow allowFileAccess - enables file access within WebView
Allow allowFileAccessFromFileUrls - sets whether JavaScript running in the context of a file scheme URL should be allowed to access content from other file scheme URLs
Allow allowUniversalAccessFromFileUrls - sets whether JavaScript running in the context of a file scheme URL should be allowed to access content from any origin
Allow allowContentAccess - enables content URL access within WebView
Allow javaScriptCanOpenWindowsAutomatically - tells JavaScript to open windows automatically
Enable domStorageEnabled - sets whether the DOM storage API is enabled
Do not allow mediaPlaybackRequiresUserGesture - sets whether the WebView requires a user gesture to play media

Embedding the Required Script

To allow Jumio to identify the user runtime environment, you will need to embed a required script that sets flag NVW_WEBVIEW to true to interact with the webview window object. For details, see the sample code below.

Optional postMessage communication

You can handle messages from the ID Verification Web Client using the same method as described in Optional iFrame Logging.

You will need to register a postMessage handler and put the relevant code sections in the PostMessageHandler class as in the example below.

Sample code

AndroidManifest.xml example

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
        package="com.jumio.nvw4">
    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.CAMERA" />
    <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
    ...
</manifest>

build.gradle example

dependencies {
    implementation 'androidx.appcompat:appcompat:1.2.0-beta01'
    implementation 'androidx.webkit:webkit:1.2.0'
    ...
}

WebViewFragment.kt example

class WebviewFragment : Fragment() {

    companion object {
        var TAG: String = "NVW4"
        var PERMISSION_REQUEST_CODE: Int = 1000
        private var mUploadMessage: ValueCallback<Uri?>? = null
        var uploadMessage: ValueCallback<Array<Uri>>? = null
        const val REQUEST_SELECT_FILE = 1002
        private const val FILECHOOSER_RESULTCODE = 1003

        private var _binding: FragmentWebviewBinding? = null
        private val binding get() = _binding!!


        //Inject javascript code here that is executed after the page is loaded
        val injectFunction = """
        function () {
            window['__NVW_WEBVIEW__'] = {
            isAndroid: true
            }
        }
        """.trimIndent()

        private var mFilePathCallback: ValueCallback<Array<Uri>>? = null

        fun newInstance(url: String): WebviewFragment {
            val fragment = WebviewFragment()

            val args = Bundle()
            args.putString("url", url)
            fragment.arguments = args

            return fragment
        }
    }

    override fun onCreateView(
        inflater: LayoutInflater,
        container: ViewGroup?,
        savedInstanceState: Bundle?
    ): View {
        _binding = FragmentWebviewBinding.inflate(inflater, container, false)
        return binding.root
    }

    @SuppressLint("SetJavaScriptEnabled")
    override fun onViewCreated(view: View, savedInstanceState: Bundle?) {
        super.onViewCreated(view, savedInstanceState)

        WebView.setWebContentsDebuggingEnabled(true)

        binding.webview.settings.javaScriptEnabled = true
        binding.webview.settings.allowFileAccessFromFileURLs = true
        binding.webview.settings.allowFileAccess = true
        binding.webview.settings.allowContentAccess = true
        binding.webview.settings.allowUniversalAccessFromFileURLs = true
        binding.webview.settings.javaScriptCanOpenWindowsAutomatically = true
        binding.webview.settings.mediaPlaybackRequiresUserGesture = false
        binding.webview.settings.domStorageEnabled = true

        binding.webview.addJavascriptInterface(PostMessageHandler(), "__NVW_WEBVIEW_HANDLER__")

        binding.webview.webChromeClient = object : WebChromeClientFullScreen() {

            // Grant permissions for cam
            @TargetApi(Build.VERSION_CODES.M)
            override fun onPermissionRequest(request: PermissionRequest) {
                activity?.runOnUiThread {
                    if ("android.webkit.resource.VIDEO_CAPTURE" == request.resources[0]) {
                        if (ContextCompat.checkSelfPermission(
                                activity!!,
                                Manifest.permission.CAMERA
                            ) == PackageManager.PERMISSION_GRANTED
                        ) {
                            Log.d(
                                TAG,
                                String.format(
                                    "PERMISSION REQUEST %s GRANTED",
                                    request.origin.toString()
                                )
                            )
                            request.grant(request.resources)
                        } else {
                            ActivityCompat.requestPermissions(
                                activity!!,
                                arrayOf(
                                    Manifest.permission.CAMERA,
                                    Manifest.permission.READ_EXTERNAL_STORAGE
                                ),
                                PERMISSION_REQUEST_CODE
                            )
                        }
                    }
                }
            }

            // For Lollipop 5.0+ Devices
            @RequiresApi(api = Build.VERSION_CODES.LOLLIPOP)
            override fun onShowFileChooser(
                mWebView: WebView?,
                filePathCallback: ValueCallback<Array<Uri>>?,
                fileChooserParams: FileChooserParams
            ): Boolean {
                if (uploadMessage != null) {
                    uploadMessage!!.onReceiveValue(null)
                    uploadMessage = null
                }
                try {
                    uploadMessage = filePathCallback
                    val intent = fileChooserParams.createIntent()
                    intent.type = "image/*"
                    try {
                        startActivityForResult(intent, REQUEST_SELECT_FILE)
                    } catch (e: ActivityNotFoundException) {
                        uploadMessage = null
                        Toast.makeText(
                            activity?.applicationContext,
                            "Cannot Open File Chooser",
                            Toast.LENGTH_LONG
                        ).show()
                        return false
                    }
                    return true
                } catch (e: ActivityNotFoundException) {
                    uploadMessage = null
                    Toast.makeText(
                        activity?.applicationContext,
                        "Cannot Open File Chooser",
                        Toast.LENGTH_LONG
                    ).show()
                    return false
                }
            }

            private fun openFileChooser(uploadMsg: ValueCallback<Uri?>) {
                mUploadMessage = uploadMsg
                val i = Intent(Intent.ACTION_GET_CONTENT)
                i.addCategory(Intent.CATEGORY_OPENABLE)
                i.type = "image/*"
                startActivityForResult(
                    Intent.createChooser(i, "File Chooser"),
                    FILECHOOSER_RESULTCODE
                )
            }

            override fun onConsoleMessage(consoleMessage: ConsoleMessage): Boolean {
                Log.d(TAG, consoleMessage.message())
                return true
            }

            override fun getDefaultVideoPoster(): Bitmap {
                return Bitmap.createBitmap(10, 10, Bitmap.Config.ARGB_8888)
            }
        }

        binding.webview.webViewClient = object : WebViewClient() {

            override fun onReceivedError(
                view: WebView?,
                errorCode: Int,
                description: String?,
                failingUrl: String?
            ) {
                Toast.makeText(activity, description, Toast.LENGTH_SHORT).show()
            }

            override fun onReceivedSslError(
                view: WebView?,
                handler: SslErrorHandler?,
                error: SslError?
            ) {
                handler?.proceed()
            }

            override fun onPageStarted(view: WebView?, url: String?, favicon: Bitmap?) {
                // Put your javascript function that you want to execute here
                binding.webview.loadUrl("javascript:($injectFunction)()")
            }
        }

        binding.webview.loadUrl(arguments?.get("url") as String)
    }

    override fun onActivityResult(requestCode: Int, resultCode: Int, intent: Intent?) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
            if (requestCode == REQUEST_SELECT_FILE) {
                if (uploadMessage == null)
                    return
                uploadMessage!!.onReceiveValue(
                    WebChromeClient.FileChooserParams.parseResult(
                        resultCode,
                        intent
                    )
                )
                uploadMessage = null
            }
        } else if (requestCode == FILECHOOSER_RESULTCODE) {
            if (null == mUploadMessage)
                return
            val result =
                if (intent == null || resultCode != AppCompatActivity.RESULT_OK) null else intent.data
            mUploadMessage!!.onReceiveValue(result)
            mUploadMessage = null
        } else {
            Toast.makeText(
                activity?.applicationContext,
                "Failed to Upload Image",
                Toast.LENGTH_LONG
            ).show()
        }
        super.onActivityResult(requestCode, resultCode, intent)
    }

    class PostMessageHandler {
        @JavascriptInterface
        fun postMessage(json: String?, transferList: String?): Boolean {
            /*
                There we're handling messages from NVW4 client, its the same as for iFrame logging;
                More details can be found here:
                https://github.com/Jumio/implementation-guides/blob/master/netverify/netverify-web-v4.md#optional-iframe-logging
            */
            Log.d(TAG, "postMessage triggered, json: " + json.toString())
            return true
        }
    }

        /**
         * Custom WebChromClient to handle iProov full screen requirement
         * More details can be found here:
         * https://github.com/iProov/android/wiki/Java-WebView
         */
    open inner class WebChromeClientFullScreen : WebChromeClient() {
        private var customView: View? = null
        private var customViewCallback: CustomViewCallback? = null
        private var originalOrientation = ActivityInfo.SCREEN_ORIENTATION_UNSPECIFIED
        private var originalVisibility = View.INVISIBLE

        /**
         * Callback will tell the host application that the current page would
         * like to show a custom View in a particular orientation
         */
        override fun onShowCustomView(view: View, callback: CustomViewCallback) {
            //If we have custom view, that means that we are already in full screen, and need to go to original state
            if (customView != null) {
                onHideCustomView()
                return
            }
            //going full screen
            customView = view
            //We need to store there parameters, so we can restore app state, after we exit full screen mode
            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.R) {
                originalVisibility = activity?.window?.decorView?.visibility!!
                (activity?.window?.decorView as FrameLayout).addView(
                    customView,
                    FrameLayout.LayoutParams(-1, -1)
                )
                activity?.window?.setDecorFitsSystemWindows(false)
            } else {
                originalVisibility = activity?.window?.decorView?.windowSystemUiVisibility!!
                (activity?.window?.decorView as FrameLayout).addView(
                    customView,
                    FrameLayout.LayoutParams(-1, -1)
                )
                activity?.window?.decorView?.systemUiVisibility =
                    3846 or View.SYSTEM_UI_FLAG_LAYOUT_STABLE
            }
            originalOrientation = activity?.requestedOrientation!!
        }

        /**
         * Callback will tell the host application that the current page exited full screen mode,
         * and the app has to hide custom view.
         */
        override fun onHideCustomView() {
            (activity?.window?.decorView as FrameLayout).removeView(
                customView
            )
            customView = null
            //Restoring app state, as it was before we go to full screen
            if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.R) {
                activity?.window?.setDecorFitsSystemWindows(true)
            } else {
                activity?.window?.decorView?.systemUiVisibility = originalVisibility
            }
            activity?.requestedOrientation = originalOrientation
            if (customViewCallback != null) customViewCallback!!.onCustomViewHidden()
            customViewCallback = null
        }
    }

Use of iProov

Please be aware that if iProov is included in your workflow, it is necessary to extend WebChromeClient class to implement a custom view, in order to handle certain iProov full screen requirements.

See WebViewFragment.kt code sample above, specifically WebChromeClientFullScreen inner class.

Sample App

Check out our Sample App for the Native Android WebView

iOS

Jumio supports two types of webview for iOS:

Safari WebView

Pros	Cons
Access to the camera during ID and Identity	No optional postMessage communication
Fewer integration steps	Fewer options for troubleshooting

Native iOS WebView

Pros	Cons
Optional postMessage communication	Image upload only (no access to the camera)
Better options for troubleshooting	More integration steps

Safari WebView This section illustrates how to embed ID Verification Web in a Safari View Controller.

Permissions and Settings Make sure that camera permissions are granted.

Sample code ViewController.swift example

import AVFoundation
import SafariServices
import UIKit
​
class ViewController: UIViewController {

    @IBAction func loadButton(_ sender: Any) {
        checkCameraPermission()
        let url: String = "https://www.jumio.com/"
        showSafariVC(inputText)
    }

    // present SFSafariViewController
    private func showSafariVC(_ stringURL: String) {
        guard let URL = URL(string: stringURL) else {
            return
        }
​
        let safariVC = SFSafariViewController(url: URL)
        present(safariVC, animated: true)
    }

    func safariViewControllerDidFinish(_ safariVC: SFSafariViewController) {
        safariVC.dismiss(animated: true, completion: nil)
    }

    // ask for camera permissions
    func checkCameraPermission() {
        AVCaptureDevice.requestAccess(for: .video) { (granted) in
            if !granted {
                print("Camera permission denied")
            }
        }
    }
}

Sample App

Check out our Sample App for the iOS Safari WebView

Native iOS WebView

This section illustrates how to embed ID Verification Web in a native iOS WebView.

Permissions and Settings

No specific permissions are needed as we cannot access the camera due to native WebView limitations for iOS.

Embedding the Required Script

Optional postMessage communication

You can handle messages from the ID Verification Web Client using the same method as described in Optional iFrame Logging.

Sample code

ViewController.swift example

class ViewController: UIViewController {
    @IBOutlet weak var webView: WKWebView!
​
    override func viewDidLoad() {
        super.viewDidLoad()
        webView.navigationDelegate = self;
​
        /**
         *  Registering handler for postMessage communication (iFrame logging equivalent - optional)
         */
        webView.configuration.userContentController.add(self, name: "__NVW_WEBVIEW_HANDLER__")
​
        webView.load( URLRequest("<<NVW4 SCAN REF LINK>>"));
    }
}
​
extension ViewController: WKNavigationDelegate {
    /**
     *  Embedding script at very beginning, before NVW4 initialize (important)
     */
    func webView(_ webView: WKWebView, didStartProvisionalNavigation navigation: WKNavigation!) {
        /**
         *  Necessary integration step - embedding script
         */
        self.webView?.evaluteJavaScript("(function() { window['__NVW_WEBVIEW__'] = true })()") { _, error in
            if let error = error {
                print("ERROR while evaluating javascript \(error)") // error handling whenever executing script fails
            }
            print("executed injected javascript")
        };
    }
}
​
extension ViewController: WKScriptMessageHandler {
    /**
     *  PostMessage handler for iframe logging equivalent (optional)
     */
    func userContentController(_ userController: WKUserContentController, didReceive message: WKScriptMessage) {
        if message.name == "__NVW_WEBVIEW_HANDLER__", let messageBody = message.body as? String {
            /*
    *  See iFrame logging:
    *  https://github.com/Jumio/implementation-guides/blob/master/netverify/netverify-web-v4.md#optional-iframe-logging
            */
        }
    }
}

Sample App Check out our Sample App for the Native iOS WebView

After the User Journey

At the end of the web acquisition user journey, the following query parameters are appended by the web client to the success or error URL before the end user is redirected by the browser. Required items appear in bold type.

Name	Description
accountId	UUID of the account
workflowExecutionId	UUID of the workflow
acquisitionStatus	Possible values: SUCCESS, ERROR
customerInternalReference	Customer internal reference for a request to link it in the customer backend
errorCode	Predefined list of error codes, only appended to errorUrl when acquisitionStatus is ERROR. Possible values: 9100 (Error occurred on our server), 9200 (Authorization token missing, invalid, or expired), 9210 (Session expired after the user journey started), 9300 (Error occurred transmitting image to our server), 9400 (Error occurred during verification step), 9800 (User has no network connection), 9801 (Unexpected error occurred in the client), 9810 (Problem while communicating with our server), 9820 (File upload not enabled and camera unavailable), 9821 (The biometric face capture process failed, e.g. issue with iProov), 9822 (Browser does not support camera), 9835 (No acceptable submission in 3 attempts), 9836 (Authentication Failure)

Supported Environments

Jumio offers guaranteed support for ID Verification on the following browsers and the latest major version of each operating system.

Desktop

Browser	Major version	Operating system	Supports image upload	Supports camera capture	Supports biometric face capture
Google Chrome	current + 1 previous	Windows + Mac	X	X	X
Mozilla Firefox	current + 1 previous	Windows + Mac	X	X	X
Apple Safari	current	Mac	X	X	X
Microsoft Edge	current	Windows	X	X	X

Mobile

Browser name	Major browser version	Operating system	Supports image upload	Supports camera capture	Supports biometric face capture
Google Chrome	current	Android	X	X	X
Samsung Internet	current	Android	X	X	X
Apple Safari	current	iOS	X	X	X¹

1Fullscreen functionality during capture only supported for iPads. iPhone process works, but fullscreen is limited and capture may be less accurate.

Native WebView

Operating system	Major version	Supports image upload	Supports camera capture	Supports biometric face capture
Native Android WebView	current + 1 previous	X	X	X
Native iOS WebView¹	current + 1 previous	X
iOS Safari WebView	current + 1 previous	X	X	X

1If you are using a native WebView for iOS you will need to enable image upload to allow the end user to finish the user journey.

Callback

The callback is the authoritative answer from Jumio. Specify a callback URL (for constraints see Configuring Settings in the Customer Portal) to automatically receive the result for each transaction.

To specify a global callback URL in the Customer Portal, see Configuring Settings in the Customer Portal.

A callback URL can also be specified per account, see instructions in sections Account Creation and Account Update.

Best Practices

Use callbacks to check if a workflow has finished processing. Once Jumio has sent the callback, save it on your side and send back a 200 OK response. Afterwards, to retrieve transaction details or images, use the Retrieval API.

Jumio Callback IP Addresses

Allowlist the following IP addresses for callbacks, and use them to verify that the callback originated from Jumio.

US Data Center:

34.202.241.227 34.226.103.119 34.226.254.127 52.52.51.178 52.53.95.123 54.67.101.173 Use the hostname callback.jumio.com to look up the most current IP addresses.

EU Data Center:

34.253.41.236 35.157.27.193 52.48.0.25 52.57.194.92 52.58.113.86 52.209.180.134 Use the hostname callback.lon.jumio.com to look up the most current IP addresses.

SGP Data Center:

3.0.109.121 52.76.184.73 52.77.102.92 Use the hostname callback.core-sgp.jumio.com to look up the most current IP addresses.

Callback Parameters

An HTTP POST request is sent to your specified callback URL containing an application/json formatted string with the transaction result.

Parameter	Type	Notes
callbackSentAt	string	Timestamp of the callback in the format: YYYY-MM-DDThh:mm:ss.SSSZ
userReference	string	User reference (if set in initiate call)
workflowExecution	object	Possible values: workflowExecution.id, workflowExecution.href
workflowExecution.id	string	UUID of the workflow
workflowExecution.href	sting	URL to retrieve workflow details
workflowExecution.definitionKey	string	Key of the workflow definition you executed. See supported keys
workflowExecution.status	string	Possible values: PROCESSED, SESSION_EXPIRED, TOKEN_EXPIRED
account	object	Possible values: account.id, account.href
account.id		UUID of the account
account.href		URL to retrieve account details

Examples

{
  "callbackSentAt":"2021-01-21T14:55:01.917Z",
  "workflowExecution":{
    "id":"22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "href":"https://retrieval.apac-1.jumio.ai/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx/workflow-executions/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "definitionKey":"3",
    "status":"PROCESSED"
},
  "account":{
    "id":"11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
    "href":"https://retrieval.apac-1.jumio.ai/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
  }
}

Retrieval

The Retrieval API allows you to get information from a transaction, including the transaction status, workflow details, and images.

Best Practices

Before retrieving transaction data, make sure the transaction is complete. Waiting for the callback using the Callback API is recommended. Alternatively, transaction status can also be retrieved using the Retrieval Status API. If the transaction status is PROCESSED, retrieve details and image(s) once. If the transaction status is SESSION_EXPIRED or TOKEN_EXPIRED, the transaction has been unsuccessful. Maximum of 10 consecutive retrieval attempts after successful image acquisition. Request timings recommendations: 40, 60, 100, 160, 240, 340, 460, 600, 760, 940 seconds You are also allowed to set your own definition.

Request

Request Headers The following fields are required in the header section of your request:

Accept: application/json Content-Type: application/json Content-Length: see RFC-7230 Authorization: see RFC6749 User-Agent: YourCompany YourApp/v1.0

Available Retrieval APIs

This section describes the Retrieval APIs: Status, Workflow Details, and Images.

Get Status

HTTP Request Method: GET

US: https://retrieval.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/status EU: https://retrieval.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/status SG: https://retrieval.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>/status

Status Request Path Parameters

Parameter	Type	Note
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow

Status Response

Unsuccessful requests will return HTTP status code 401 Unauthorized, 403 Forbidden or 404 Not Found if the scan is not available.

Successful requests will return HTTP status code 200 OK along with a JSON object containing the information described below.

Parameter	Type	Note
account	object	Possible values: account.id, account.href
account.id	string	UUID of the account
account.href	string	URL to retrieve account details
workflowExecution	object	Possible values: workflowExecution.id, workflowExecution.href, workflowExecution.definitionKey, workflowExecution.status
workflowExecution.id	string	UUID of the workflow
workflowExecution.href	string	URL to retrieve workflow details
workflowExecution.definitionKey	string	Key of the workflow definition which you executed. See supported keys
workflowExecution.status	string	Possible values: INITIATED, ACQUIRED, PROCESSED, SESSION_EXPIRED, TOKEN_EXPIRED

Examples

{
    "account": {
        "id": "11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
        "href": "https://retrieval.apac-1.jumio.ai/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
    },
    "workflowExecution": {
        "id": "22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
        "href": "https://retrieval.apac-1.jumio.ai/api/v1/workflow-executions/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
        "definitionKey": "2",
        "status": "PROCESSED"
    }
}

Get Workflow Details

HTTP Request Method: GET

US: https://retrieval.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> EU: https://retrieval.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId> SG: https://retrieval.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>

Workflow Request Path Parameters

Parameter	Type	Note
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow

Workflow Execution Response Unsuccessful requests will return HTTP status code 401 Unauthorized, 403 Forbidden or 404 Not Found if the scan is not available.

Successful requests will return HTTP status code 200 OK along with a JSON object containing the information described below.

Parameter	Type	Note
createdAt	string	Timestamp (UTC) of the creation. Format: YYYY-MM-DDThh:mm:ss.SSSZ
startedAt	string	Timestamp (UTC) of the start. Format: YYYY-MM-DDThh:mm:ss.SSSZ
completedAt	string	Timestamp (UTC) of the completion. Format: YYYY-MM-DDThh:mm:ss.SSSZ
account	object	Possible values: account.id
account.id	string	UUID of the account
workflow	object	Possible values: workflow.id, workflow.status, workflow.definitionKey, workflow.userReference, workflow.customerInternalReference
workflow.id	string	UUID of the workflow
workflow.status	string	Possible values: INITIATED, ACQUIRED, PROCESSED, SESSION_EXPIRED, TOKEN_EXPIRED
workflow.definitionKey	string	See supported keys
workflow.userReference	string	Customer internal reference for a request to link it in the customer backend (must not contain any PII)
workflow.customerInternalReference	string	Reference for the end user in the customer backend (must not contain any PII)
credentials	array (object)	See credentials
capabilities	object	See capabilities

credentials

Parameter	Type	Note
id	string	UUID of the credentials
category	string	ID
parts	object	Possible values: parts.classifier, parts.href
parts.classifier	string	Possible values: FRONT, BACK, FACE
parts.href	string	href to manage parts for the account credentials

capabilities Since workflow execution consists of a chain of multiple capability executions (usability, extraction, liveness, ...), some have dependencies between them and need the result of previous executions.

This means that some capabilities should not be executed if any of the previous capabilities were not successful because they were REJECTED or NOT_EXECUTED. If, for example, usability has passed, but imageChecks got rejected with the reason DIGITAL_COPY, the consequent extraction and dataChecks cannot be executed because of PRECONDITION_NOT_FULFILLED. The precondition in this case would be to successfully pass imageChecks.

Capability execution dependencies

usability --> imageChecks --> extraction --> dataChecks usability --> liveness usability --> similarity usability --> authentication usability --> imageChecks --> extraction --> watchlistScreening usability --> imageChecks --> extraction --> addressValidation usability --> imageChecks --> extraction --> proofOfResidency usability --> imageChecks --> extraction --> drivingLicenseVerification

Parameter	Type	Note	Dependency
usability	array (object)	See usability	none
liveness	array (object)	See liveness	usability
similarity	array (object)	See similarity	usability
authentication	array (object)	See authentication	usability
imageChecks	array (object)	See imageChecks	usability
extraction	array (object)	See extraction	usability, imageChecks
dataChecks	array (object)	See dataChecks	usability, imageChecks, extraction
watchlistScreening	array (object)	See watchlistScreening	usability, imageChecks, extraction
addressValidation	array (object)	See addressValidation	usability, imageChecks, extraction
proofOfResidency	array (object)	See proofOfResidency	usability, imageChecks, extraction
drivingLicenseVerification	array (object)	See drivingLicenseVerification	usability, imageChecks, extraction

capabilities.usability

Dependency: none

Parameter	Type	Note
id	string	UUID of the capability
credentials	object
credentials.id	string	UUID of the credentials
credentials.category	string	Possible values: ID, FACEMAP, DOCUMENT, SELFIE
decision	object
decision.type	string	Possible values: NOT_EXECUTED, PASSED, REJECTED, WARNING
decision.details	object
decision.details.label	string	if decision.type = NOT_EXECUTED: TECHNICAL_ERROR, NOT_UPLOADED. if decision.type = PASSED: OK. if decision.type = REJECTED: BAD_QUALITY, BLURRED1, BAD_QUALITY_IMAGE1, PART_OF_DOCUMENT_MISSING1, PART_OF_DOCUMENT_HIDDEN1, DAMAGED_DOCUMENT1, GLARE1, MISSING_MANDATORY_DATAPOINTS1, BLACK_WHITE, MISSING_PAGE, MISSING_SIGNATURE, NOT_A_DOCUMENT, PHOTOCOPY. if decision.type = WARNING: LIVENESS_UNDETERMINED, UNSUPPORTED_COUNTRY, UNSUPPORTED_DOCUMENT_TYPE

. 1 Will be added in the week of January 30, 2023.

capabilities.similarity

Dependency:usability

Parameter	Type	Note
id	string	UUID of the capability
credentials	object
credentials.id	string	UUID of the credentials
credentials.category	string	Possible values: ID, FACEMAP, DOCUMENT, SELFIE
decision	object
decision.type	string	Possible values: NOT_EXECUTED, PASSED, REJECTED, WARNING
decision.details	object
decision.details.label	string	If decision.type = REJECTED: LIVENESS_UNDETERMINED, ID_USED_AS_SELFIE, MULTIPLE_PEOPLE, DIGITAL_COPY, PHOTOCOPY, MANIPULATED, NO_FACE_PRESENT, FACE_NOT_FULLY_VISIBLE, BLACK_WHITE. If decision.type = PASSED: OK. If decision.type = WARNING: AGE_DIFFERENCE, BAD_QUALITY. If decision.type = NOT_EXECUTED: PRECONDITION_NOT_FULFILLED, TECHNICAL_ERROR.
data	object
data.type	string	Possible values: IPROOV_STANDARD (Web + SDK channel only), IPROOV_PREMIUM (Workflow 3: ID and Identity Verification – Web + SDK channel only; Workflow 9: Authentication – SDK only; Workflow 16: Authentication on Premise – SDK only), JUMIO_STANDARD
data.predictedAge	integer	Predicted age according to the selfie. Example: 28
data.ageConfidenceRange	string	Age range we are confident the selfie age is within. Example: 25-34
validFaceMapForAuthentication	string	Href to manage facemap

capabilities.authentication

Dependency:usability

Parameter	Type	Note
id	string	UUID of the capability
credentials	object
credentials.id	string	UUID of the credentials
credentials.category	string	Possible values: ID, FACEMAP, DOCUMENT, SELFIE
decision	object
decision.type	string	Possible values: NOT_EXECUTED, PASSED, REJECTED, WARNING
decision.details	object
decision.details.label	string	If decision.type = REJECTED: LIVENESS_UNDETERMINED, ID_USED_AS_SELFIE, MULTIPLE_PEOPLE, DIGITAL_COPY, PHOTOCOPY, MANIPULATED, NO_FACE_PRESENT, FACE_NOT_FULLY_VISIBLE, BLACK_WHITE. If decision.type = PASSED: OK. If decision.type = WARNING: AGE_DIFFERENCE, BAD_QUALITY. If decision.type = NOT_EXECUTED: PRECONDITION_NOT_FULFILLED, TECHNICAL_ERROR.
data	object
data.type	string	Possible values: IPROOV_STANDARD (Web + SDK channel only), IPROOV_PREMIUM (Workflow 3: ID and Identity Verification – Web + SDK channel only; Workflow 9: Authentication – SDK only; Workflow 16: Authentication on Premise – SDK only), JUMIO_STANDARD
data.predictedAge	integer	Predicted age according to the selfie. Example: 28
data.ageConfidenceRange	string	Age range we are confident the selfie age is within. Example: 25-34
validFaceMapForAuthentication	string	Href to manage facemap

capabilities.imageChecks

Dependency:usability

Parameter	Type	Description
`id`	string	UUID of the capability.
`credentials`	object	Information about the credentials used for this capability.
`credentials.id`	string	UUID of the credentials.
`credentials.category`	string	Category of the credential. Possible values: `ID`, `FACEMAP`, `DOCUMENT`, `SELFIE`.
`decision`	object	Contains the result of the capability evaluation.
`decision.type`	string	Overall decision outcome. Possible values: `NOT_EXECUTED`, `PASSED`, `REJECTED`, `WARNING`.
`decision.details`	object	Provides additional details about the decision.
`decision.details.label`	string	Detailed decision reason based on `decision.type` (see below).
`data`	object	Additional capability-specific data. See `imageChecks.data` for structure.

Decision Details Mapping

If decision.type = NOT_EXECUTED

Possible decision.details.label values:

PRECONDITION_NOT_FULFILLED
TECHNICAL_ERROR

If decision.type = PASSED

OK

If decision.type = REJECTED

DIGITAL_COPY
WATERMARK
MANIPULATED_DOCUMENT
MANIPULATED_DOCUMENT_PHOTO1
MANIPULATED_DOCUMENT_EXPIRY1
MANIPULATED_DOCUMENT_NAME1
MANIPULATED_DOCUMENT_ADDRESS1
MANIPULATED_DOCUMENT_SECURITY_CHECKS1
MANIPULATED_DOCUMENT_SIGNATURE1
MANIPULATED_DOCUMENT_PERSONAL_NUMBER1
MANIPULATED_DOCUMENT_PLACE_OF_BIRTH1
MANIPULATED_DOCUMENT_GENDER1
MANIPULATED_DOCUMENT_ISSUING_DATE1
OTHER_REJECTION
GHOST_IMAGE_DIFFERENT
PUNCHED
SAMPLE
FAKE
CHIP_MISSING
DIGITAL_MANIPULATION
MISMATCH_FRONT_BACK

If decision.type = WARNING

DIFFERENT_PERSON
REPEATED_FACE (Same face with same data occurs multiple times — potential opening of multiple accounts.)

. 1 Will be added in the week of January 30, 2023.

capabilities.imageChecks.data

Parameter	Type	Description
data.faceSearchFindings	object	Result of the 1:N face search performed against faces from previous transactions.
data.faceSearchFindings.status	string	Status of the face search execution. Possible values: DONE, PENDING, ERROR.
data.faceSearchFindings.findings	array (string)	List of workflow IDs where a face (from the ID document or Selfie) matches a face from a previous transaction.
data.faceSearchFindings.findings[]	string	UUID of the matching workflow.

capabilities.extraction

Dependencies:usability, imageChecks

Parameter	Type	Description
id	string	UUID of the capability.
credentials	object	Credential information related to the capability execution.
credentials.id	string	UUID of the credentials.
credentials.category	string	Type of credential used. Possible values: ID, FACEMAP, DOCUMENT, SELFIE.
decision	object	Result of the capability evaluation.
decision.type	string	Overall decision outcome. Possible values: NOT_EXECUTED, PASSED.
decision.details	object	Additional information about the decision outcome.
decision.details.label	string	Detailed decision label. If decision.type = NOT_EXECUTED: PRECONDITION_NOT_FULFILLED, TECHNICAL_ERROR. If decision.type = PASSED: OK.
data	object	Contains capability-specific result data. See extraction.data section for details.

capabilities.extraction.data

Parameter	Type	Description
data.type	string	Document type. Possible values: PASSPORT DRIVING_LICENSE ID_CARD VISA UNSUPPORTED
data.subType	string	Document subtype. If data.type = ID_CARD: NATIONAL_ID CONSULAR_ID ELECTORAL_ID RESIDENT_PERMIT_ID TAX_ID STUDENT_ID PASSPORT_CARD_ID MILITARY_ID PUBLIC_SAFETY_ID HEALTH_ID OTHER_ID VISA UNKNOWN If data.type = DRIVING_LICENSE: REGULAR_DRIVING_LICENSE LEARNING_DRIVING_LICENSE If data.type = PASSPORT: E_PASSPORT (mobile only)
data.issuingCountry	string	Country code in ISO 3166-1 alpha-3 format.
data.firstName	string	First name as shown on the ID (if enabled), otherwise as provided.
data.lastName	string	Last name as shown on the ID (if enabled), otherwise as provided.
data.dateOfBirth	string	Date of birth in format YYYY-MM-DD (if enabled), otherwise as provided.
data.expiryDate	string	Expiry date in format YYYY-MM-DD (if enabled), otherwise as provided.
data.issuingDate	string	Issuing date in format YYYY-MM-DD (if enabled), otherwise as provided.
data.state	string	State or region code. US: last two characters of ISO 3166-2 AU: last 2–3 characters of ISO 3166-2 CA: last two characters of ISO 3166-2 ISO 3166-1 country name XKX (Kosovo) Free text if mapping is not possible
data.personalNumber	string	Personal number (if type = PASSPORT and available). Activation required.
data.optionalMrzField1	string	Optional MRZ field (line 1).
data.optionalMrzField2	string	Optional MRZ field (line 2).
data.address	object	Extracted address information. Activation required.
data.issuingAuthority	string	Issuing authority of the document. Activation required.
data.issuingPlace	string	Issuing place of the document. Activation required.
data.curp	string	CURP (Mexico). Activation required.
data.gender	string	Gender. Possible values: M F X
data.nationality	string	Nationality (ISO 3166-1 alpha-3). Activation required.
data.placeOfBirth	string	Place of birth of the document holder.
data.taxNumber	string	Tax number. If country = ITA and subtype = HEALTH_ID or TAX_ID. Also known as `fiscalNumber` in Italy. Activation required
data.cpf	string	CPF number. Activation required.
data.registrationNumber	string	Registration number. Activation required.
data.mothersName	string	Mother’s name. Activation required.
data.fathersName	string	Father’s name. Activation required.
data.personalIdentificationNumber	string	Personal identification number. Activation required. GEO + PASSPORT COL + ID_CARD LTU + DRIVING_LICENSE TUR + ID_CARD, DRIVING_LICENSE ROU + ID_CARD, DRIVING_LICENSE
data.rgNumber	string	“General Registration” number. If country = BRA Activation required
data.dlCategories	array	Driving license categories.
data.voterIdNumber	string	Voter ID number. If country = MEX Activation required
data.issuingNumber	string	Issuing number. If country = MEX Activation required
data.passportNumber	string	Passport number. If type = VISA Activation required
data.durationOfStay	string	Duration of stay. If type = VISA Activation required
data.numberOfEntries	string	Number of entries. If type = VISA Activation required
data.visaCategory	string	Visa category. If type = VISA Activation required
data.dni	string	DNI number. If country = ESP and subtype = NATIONAL_ID Activation required
data.pesel	string	PESEL number. If country = POL Activation required
data.expiryDateParts	object	Structured expiry date. year (YYYY) month (MM) day (DD) Example: `{"year":"2022","month":"08","day":"31"}`
data.dateOfBirthParts	object	Structured date of birth. year (YYYY) month (MM) day (DD) Example: `{"year":"2022","month":"08","day":"31"}`
data.issuingDateParts	object	Structured issuing date. year (YYYY) month (MM) day (DD) Example: `{"year":"2022","month":"08","day":"31"}`
data.laborIdentificationNumber	string	CUIL number. If country = ARG Activation required
data.documentCopy	string	Ejemplar number. If country = ARG Activation required
data.residentPermitType	string	Permit type related to “Golden Visas”. If country = GBR Activation required
data.residentPermitRemarks	string	Permit remarks related to “Golden Visas”. If country = GBR Activation required
data.documentIdentificationNumber	string	Document Identification Number. Activation required.
data.citizenship	string	Citizenship. If country = IDN Activation required
data.maritalStatus	string	Marital status. If country = IDN Activation required
data.religion	string	Religion. If country = IDN, MYS Activation required
data.currentAge	integer	Calculated age (current date − extracted date of birth). Example: 30.
data.lastNameAtBirth	string	Last name at birth. If country = SLO Activation required
data.remarks	string	Special remarks or titles. If country = SLO Example: "Mgr" Activation required
data.disability	string	Indicates whether at least one disability icon is present. If country = BHR Possible values: YES, NO Activation required

1 If one of the values such as "day" is not included in the document it will also not be returned in the object. For examples and additional details, refer to our Knowledge Base.

capabilities.extraction.data.address

Parameter	Type	Description
line1	string	Line item 1.
line2	string	Line item 2.
line3	string	Line item 3.
line4	string	Line item 4.
line5	string	Line item 5.
country	string	Country code. ISO 3166-1 alpha-3 country code XKX (Kosovo)
postalCode	string	Postal code.
subdivision	string	Subdivision (Region, State, Province, Emirate, Department, etc.).
city	string	City.
formattedAddress	string	Complete formatted address.

capabilities.dataChecks

Dependencies:usability, imageChecks, extraction

Parameter	Type	Description
id	string	UUID of the capability.
credentials	object	Credential information related to the capability execution.
credentials.id	string	UUID of the credentials.
credentials.category	string	Credential category. ID FACEMAP DOCUMENT SELFIE
decision	object	Result of the capability evaluation.
decision.type	string	Overall decision outcome. NOT_EXECUTED PASSED REJECTED
decision.details	object	Additional information about the decision outcome.
decision.details.label	string	Detailed decision label. If decision.type = NOT_EXECUTED: PRECONDITION_NOT_FULFILLED TECHNICAL_ERROR If decision.type = PASSED: OK If decision.type = REJECTED: NFC_CERTIFICATE MISMATCHING_DATAPOINTS MRZ_CHECKSUM MISMATCHING_DATA_REPEATED_FACE (same face occurs multiple times with different data – high possibility of fraud attempt) MISMATCH_HRZ_MRZ_DATA

capabilities.watchlistScreening

Dependencies:usability, imageChecks, extraction

Parameter	Type	Description
id	string	UUID of the capability
credentials	object	Credential information
credentials.id	string	UUID of the credentials
credentials.category	string	Possible values: ID FACEMAP DOCUMENT SELFIE
decision	object	Decision result
decision.type	string	Possible values: NOT_EXECUTED PASSED WARNING
decision.details	object	Additional decision details
decision.details.label	string	If decision.type = NOT_EXECUTED: NOT_ENOUGH_DATA VALIDATION_FAILED INVALID_MERCHANT_SETTINGS TECHNICAL_ERROR EXTRACTION_NOT_DONE NO_VALID_ID_CREDENTIAL PRECONDITION_NOT_FULFILLED If decision.type = PASSED: OK If decision.type = WARNING: ALERT
data	object	See watchlistScreening.data

capabilities.watchlistScreening.data

Dependencies:usability, imageChecks, extraction

Parameter	Type	Description
searchDate	string	Timestamp (UTC) of the response. Format: YYYY-MM-DDThh:mm:ss.SSSZ
searchStatus	string	Possible values: DONE NOT_DONE ERROR
searchId	string	Returned only if searchStatus = DONE
searchReference	string	Returned only if searchStatus = DONE
searchResultUrl	string	Returned only if searchStatus = DONE
searchResults	integer	Returned only if searchStatus = DONE

capabilities.addressValidation

Parameter	Type	Description
id	string	UUID of the capability
credentials	object	Credential information
credentials.id	string	UUID of the credentials
credentials.category	string	Possible values: ID FACEMAP DOCUMENT SELFIE
decision	object	Decision result
decision.type	string	Possible values: NOT_EXECUTED PASSED REJECTED WARNING
decision.details	object	Additional decision details
decision.details.label	string	If decision.type = NOT_EXECUTED: NOT_ENOUGH_DATA TECHNICAL_ERROR UNSUPPORTED_COUNTRY PRECONDITION_NOT_FULFILLED If decision.type = PASSED: OK If decision.type = REJECTED: DENY If decision.type = WARNING: ALERT

capabilities.proofOfResidency

Dependencies: usability, imageChecks, extraction

Parameter	Type	Description
id	string	UUID of the capability
credentials	object	Credential information
credentials.id	string	UUID of the credentials
credentials.category	string	Possible values: ID FACEMAP DOCUMENT SELFIE
decision	object	Decision result
decision.type	string	Possible values: NOT_EXECUTED PASSED REJECTED WARNING
decision.details	object	Additional decision details
decision.details.label	string	If decision.type = NOT_EXECUTED: NOT_ENOUGH_DATA TECHNICAL_ERROR UNSUPPORTED_COUNTRY PRECONDITION_NOT_FULFILLED If decision.type = PASSED: OK If decision.type = REJECTED: DENY If decision.type = WARNING: ALERT

capabilities.drivingLicenseVerification

Dependencies:usability, imageChecks, extraction

Parameter	Type	Description
id	string	UUID of the capability
credentials	object	Credential information
credentials.id	string	UUID of the credentials
credentials.category	string	Possible values: ID FACEMAP DOCUMENT SELFIE
decision	object	Decision result
decision.type	string	Possible values: NOT_EXECUTED PASSED REJECTED WARNING
decision.details	object	Additional decision details
decision.details.label	string	If decision.type = NOT_EXECUTED: TECHNICAL_ERROR UNSUPPORTED_COUNTRY UNSUPPORTED_STATE PRECONDITION_NOT_FULFILLED VALIDATION_FAILED If decision.type = PASSED: OK If decision.type = REJECTED: DENY If decision.type = WARNING: ALERT

Examples

Request

GET
/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx/workflow-executions/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx HTTP/1.1
Host: retrieval.apac-1.jumio.ai
User-Agent: User Demo
Authorization: Bearer xxx

Response

{
    "workflow": {
        "id": "22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
        "status": "PROCESSED",
        "definitionKey": "10003"
    },
    "account": {
        "id": "11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx"
    },
    "createdAt": "2021-03-12T15:47:17.234Z",
    "startedAt": "2021-03-12T15:49:32.202Z",
    "completedAt": "2021-03-12T15:49:33.421Z",
    "credentials": [
        {
            "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
            "category": "ID",
            "parts": [
                {
                    "classifier": "FRONT",
                    "href": "https://retrieval.amer-1.jumio.ai/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx/credentials/33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx/parts/FRONT"
                }
            ]
        }
    ],
    "capabilities": {
        "extraction": [
            {
                "id": "1a11111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                "credentials": [
                    {
                        "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                        "category": "ID"
                    }
                ],
                "decision": {
                    "type": "PASSED",
                    "details": {
                        "label": "OK"
                    }
                },
                "data": {
                    "type": "PASSPORT",
                    "subType": "E_PASSPORT",
                    "firstName": "JANE",
                    "lastName": "DOE",
                    "dateOfBirth": "1990-01-01",
                    "expiryDate": "2023-12-01",
                    "issuingDate": "2014-01-01",
                    "documentNumber": "xxxxxxxx",
                    "personalNumber": "<<<<<<<<<<<<<<",
                    "address": {
                        "country": "AUT",
                        "formattedAddress": "AUT"
                    }
                }
            }
        ],
        "dataChecks": [
            {
                "id": "1b11111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                "credentials": [
                    {
                        "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                        "category": "ID"
                    }
                ],
                "decision": {
                    "type": "PASSED",
                    "details": {
                        "label": "OK"
                    }
                }
            }
        ],
        "imageChecks": [
            {
                "id": "1c11111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                "credentials": [
                    {
                        "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                        "category": "ID"
                    }
                ],
                "decision": {
                    "type": "PASSED",
                    "details": {
                        "label": "OK"
                    }
                }
            }
        ],
        "usability": [
            {
                "id": "1d11111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                "credentials": [
                    {
                        "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                        "category": "ID"
                    }
                ],
                "decision": {
                    "type": "PASSED",
                    "details": {
                        "label": "OK"
                    }
                }
            }
            {
                "id": "1f11111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                "credentials": [
                    {
                        "id": "44444444-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                        "category": "SELFIE"
                    }
                ],
                "decision": {
                    "type": "PASSED",
                    "details": {
                        "label": "OK"
                    }
                }
            },
            {
                "id": "1g11111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                "credentials": [
                    {
                        "id": "55555555-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                        "category": "FACEMAP"
                    }
                ],
                "decision": {
                    "type": "PASSED",
                    "details": {
                        "label": "OK"
                    }
                }
            }
        ]
        "watchlistScreening": [
             {
                     "id": "1411111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                     "credentials": [
                         {
                             "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                             "category": "ID"
                         }
                     ],
                     "decision": {
                         "type": "PASSED",
                         "details": {
                             "label": "OK"
                         }
                     },
                     "data": {
                      "searchDate": "2021-07-15T10:44:11.000Z",
                      "searchId": "12345678",
                      "searchReference": "1626345851-xxxxxx",
                      "searchResultUrl": "https://app.xxx.com/public/search/123456XXC-xxxx/xxxccc",
                      "searchResults": 0,
                      "searchStatus": "SUCCESS"
                    }
                 }
             ],
          “addressValidation”: [
              {
                     "id": "1511111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                     "credentials": [
                         {
                             "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                             "category": "ID"
                         }
                     ],
                     "decision": {
                         "type": "PASSED",
                         "details": {
                             "label": "OK"
                         }
                     },
            }
          ],
          “proofOfResidency”: [
           {
                     "id": "1611111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                     "credentials": [
                         {
                             "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                             "category": "ID"
                         }
                     ],
                     "decision": {
                         "type": "PASSED",
                         "details": {
                             "label": "OK"
                         }
                     },
            }
          ],
          "drivingLicenseVerification": [
          {
                     "id": "1711111-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                     "credentials": [
                         {
                             "id": "33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
                             "category": "ID"
                         }
                     ],
                     "decision": {
                         "type": "PASSED",
                         "details": {
                             "label": "OK"
                         }
                     },
            }
         ]
         }
     }

Get Images

HTTP Request Method: GET

US: https://retrieval.amer-1.jumio.ai/api/v1/accounts/<accountId>/credentials/<credentialId>/parts/<classifier> EU: https://retrieval.emea-1.jumio.ai/api/v1/accounts/<accountId>/credentials/<credentialId>/parts/<classifier> SG: https://retrieval.apac-1.jumio.ai/api/v1/accounts/<accountId>/credentials/<credentialId>/parts/<classifier>

Request

Image Request Path Parameters

Parameter	Type	Description
accountId	string	UUID of the account
credentialId	string	UUID of the credential
classifier	string	Possible values: FRONT BACK FACE FACEMAP

Image Response

Unsuccessful requests will return the relevant HTTP status code and information about the cause of the error. HTTP status code 404 Not Found will be returned if the transaction is not available, has been deleted, or does not contain the image you requested. Successful requests will return HTTP status code 200 OK along with a JPG or PNG image and the appropriate header (e.g. Content-Type: image/jpeg).

Examples

Request

GET
/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx/credentialsId/33333333-xxxx-xxxx-xxxx-xxxxxxxxxxxx HTTP/1.1
Host: retrieval.apac-1.jumio.ai
User-Agent: User Demo
Authorization: Bearer xxx

Health Check

Use this API to check the status of the Jumio services.

Request

Request Headers The following fields are required in the header section of your request:

Accept: application/json User-Agent: YourCompany YourApp/v1.0

Get Health Check

HTTP Request Method: GET

US: https://status.amer-1.jumio.ai EU: https://status.emea-1.jumio.ai SG: https://status.apac-1.jumio.ai

Health Check Response Parameters

Parameter	Type	Description
status	string	Overall system status. UP DEGRADED DOWN
details	object	Component-level status details. details.api details.callback details.mobile details.processing details.retrieval details.web
details.api	string	Possible values: UP DEGRADED DOWN
details.callback	string	Possible values: UP DEGRADED DOWN
details.mobile	string	Possible values: UP DEGRADED DOWN
details.processing	string	Possible values: UP DEGRADED DOWN
details.retrieval	string	Possible values: UP DEGRADED DOWN
details.web	string	Possible values: UP DEGRADED DOWN

Examples

Request

> curl https://status.apac-1.jumio.ai

Response

{
  "status":"UP"
}

//

{
  "status":"DEGRADED",
  "details": {
    "mobile":"DEGRADED",
    "callback":"DEGRADED"
  }
}

//

{
  "status":"DOWN",
  "details": {
    "retrieval": "DOWN",
    "callback": "DOWN",
    "api":"DOWN"
  }
}

Deletion

Use this API to delete accounts or workflows.

Usage

Request Request Headers The following fields are required in the header section of your request:

Accept: application/json Authorization: see RFC6749 User-Agent: YourCompany YourApp/v1.0

Available Deletion APIs

Account Deletion Deletes the account and all related workflows to the account specified by accountId.

HTTP Request Method: DELETE

US: https://retrieval.amer-1.jumio.ai/api/v1/accounts/<accountId>
EU: https://retrieval.emea-1.jumio.ai/api/v1/accounts/<accountId>
SG: https://retrieval.apac-1.jumio.ai/api/v1/accounts/<accountId>

Account Deletion Request Path Parameter

Parameter	Type	Description
accountId	string	UUID of the account

Response

Unsuccessful requests will return the relevant HTTP status code and information about the cause of the error.

Successful requests will return HTTP status code 200 OK as confirmation that you have successfully deleted the image(s) and extracted data from the specified transaction record.

Workflow Deletion

Deletes the workflow specified by workflowExecutionId.

HTTP Request Method: DELETE

US: https://retrieval.amer-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>
EU: https://retrieval.emea-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>
SG: https://retrieval.apac-1.jumio.ai/api/v1/accounts/<accountId>/workflow-executions/<workflowExecutionId>

Workflow Deletion Request Path Parameters

Parameter	Type	Description
accountId	string	UUID of the account
workflowExecutionId	string	UUID of the workflow execution

Response

Unsuccessful requests will return the relevant HTTP status code and information about the cause of the error.

Successful requests will return HTTP status code 200 OK as confirmation that you have successfully deleted the image(s) and extracted data from the specified transaction workflow.

Example

Request

DELETE
/api/v1/accounts/11111111-xxxx-xxxx-xxxx-xxxxxxxxxxxx/workflow-executions/22222222-xxxx-xxxx-xxxx-xxxxxxxxxxxx HTTP/1.1
Host: retrieval.apac-1.jumio.ai
User-Agent: User Demo
Authorization: Bearer xxx

Implementation Steps:​

Authentication and Encryption​

OAuth2​

Examples​

Access Token Timeout​

Workflow Transaction Token Timeout​

Account Creation​

Request Headers​

Request Body​

Request workflowDefinition.credentials​

Request workflowDefinition.capabilities​

Request userConsent​

Response​

esponse workflowExecution.credentials​

Examples​

Account Update​

Request​

Examples​

Response​

Implementation Steps: Sequence Diagram​

Workflow Descriptions​

Workflow Definition Keys​

End-User Consent for Biometric Data​

When to share consent parameters?​

Which Jumio products collect biometrics?​

Where to share consent parameters?​

Data Acquisition​

Android​

iOS​

API​

Request​

Response​

Examples​

Finalization​

Request Headers​

Response​

Examples​

Web​

Initiating​

Redirect pages​

Languages​

Displaying the Web Client​

Embedding in an iFrame​

Optional iFrame logging​

event.data object​

event.data.payload object​

event.data.payload.metainfo object​

Example iFrame logging code​

Android​

Permissions and Settings​

Embedding the Required Script​

Optional postMessage communication​

Sample code​

Use of iProov​

iOS​

Sample App​

Native iOS WebView​

Permissions and Settings​

Embedding the Required Script​

Optional postMessage communication​

Sample code​

After the User Journey​

Supported Environments​

Desktop​

Mobile​

Native WebView​

Callback​

Best Practices​

Jumio Callback IP Addresses​

Callback Parameters​

Retrieval​

Best Practices​

Request​

Available Retrieval APIs​

Get Status​

Examples​

Get Workflow Details​

Capability execution dependencies​

capabilities.usability​

capabilities.similarity​

Implementation Steps:

Authentication and Encryption

OAuth2

Examples

Access Token Timeout

Workflow Transaction Token Timeout

Account Creation

Request Headers

Request Body

Request workflowDefinition.credentials

Request workflowDefinition.capabilities

Request userConsent

Response

esponse workflowExecution.credentials

Examples

Account Update

Request

Examples

Response

Implementation Steps: Sequence Diagram

Workflow Descriptions

Workflow Definition Keys

End-User Consent for Biometric Data

When to share consent parameters?

Which Jumio products collect biometrics?

Where to share consent parameters?

Data Acquisition

Android

iOS

API

Request

Response

Examples

Finalization

Request Headers

Response

Examples

Web

Initiating

Redirect pages

Languages

Displaying the Web Client

Embedding in an iFrame

Optional iFrame logging

event.data object

event.data.payload object

event.data.payload.metainfo object

Example iFrame logging code

Android

Permissions and Settings

Embedding the Required Script

Optional postMessage communication

Sample code

Use of iProov

iOS

Sample App

Native iOS WebView

Permissions and Settings

Embedding the Required Script

Optional postMessage communication

Sample code

After the User Journey

Supported Environments

Desktop

Mobile

Native WebView

Callback

Best Practices

Jumio Callback IP Addresses

Callback Parameters

Retrieval

Best Practices

Request

Available Retrieval APIs

Get Status

Examples

Get Workflow Details

Capability execution dependencies

capabilities.usability

capabilities.similarity
